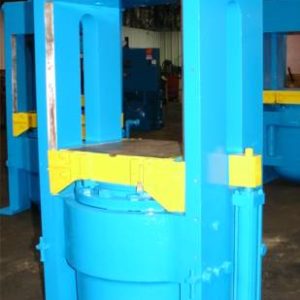

170T 32”X12”, 5”-32” ADJ. DAYLIGHT, 2.5” STROKE

SKU: 1551 Category:

THREE 7” BORE DOUBLE-ACTING CYLINDERS WITH 6” DIAMETER RODS AND APPROX 2.5” STROKE. DAYLIGHT IS ADJUSTABLE FROM APPROX 5” TO 32”. THE UPPER PLATEN RIDES ON TWO 6” DIAMETER THREADED POSTS. THERE IS A DOUBLE SHAFT MOTOR ON TOP OF THE PRESS THAT IS TIED INTO TWO GEAR BOXES THAT TURN THE THREADED POSTS. THE DAYLIGHT IS ADJUSTED BY ROTATING THE POSTS WHICH CAUSES THE TOP PLATEN TO MOVE UP OR DOWN. BOTH PLATENS ARE T-SLOTTED. OPERATOR HEIGHT IS APPROX 38”. FREE-STANDING HYDRAULIC UNIT AND CONTROL SYSTEM. HYDRAULIC POWER UNIT: APPROX 18 GALLON TANK; 10 HP MOTOR (1800 RPM; 230/460 VOLTS); OILGEAR PUMP (PVWH-06-LSAY-CNSN). ELECTRICAL CONTROLS: ALLEN-BRADLEY SLC 500 PLC; AB PANELVIEW 550 T-CAT; OPEN/CLOSE; E-STOP; PALM BUTTONS; HAND/AUTO; SEVERAL THERMOCOUPLES AND PLUGS FOR MOLD HEATERS (HEATERS NOT INCLUDED). OVERALL DIMENSIONS OF PRESS: 62” X 36” X 105” TALL. OVERALL DIMENSIONS OF HYDRAULIC UNIT/CONTROLS: 48” X 40” X 72” TALL. APPROX 6,000 LBS. R3 (ITEM #1551)
