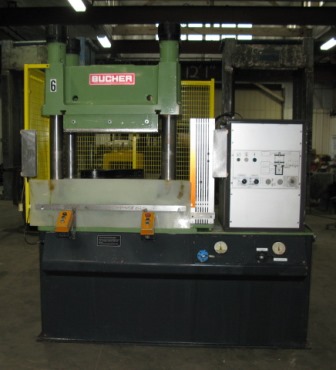

225T BUCHER 27″ L TO R X 25″ 4-POST

SKU: 2605 Category:

Description

BUCHER MODEL KHL-200; MACHINE #8400S; ORDER 3068-5/6198. NOMINAL BED IS 27” L TO R X 25” F TO B. BED AND CROWN HAVE TWO “CRISS-CROSSED” T-SLOTS. CURRENTLY SET-UP WITH SPACER BLOCKS TOP AND BOTTOM THAT ARE APPROX 25.75” X 25” X 4.75”. APPROX 39” L TO R OVERALL X 14” F TO B BETWEEN THE POSTS. CLAMP CYLINDER IS APPROX 13.75” BORE; DOUBLE ACTING; WITH AN INTERNAL “JACK-RAM” THAT IS APPROX 3” DIA. MAX STROKE IS APPROX 15.75”. DAYLIGHT WITH BLOCKS IS APPROX 12.5” (IF BLOCKS ARE REMOVED THE DAYLIGHT WILL BE APPROX 21.75”; ADD ANOTHER 5.75” IF TIE-BAR SPACERS ARE MOVED FROM ABOVE THE CROWN TO BELOW THE CROWN-MAX 27.5”). OPERATOR HEIGHT APPROX 46.5” (WITH BLOCK). FULLY GUIDED ON 4” DIA POSTS WITH 4.5” BUSHINGS. SELF-CONTAINED HYDRAULIC SYSTEM: 11 KW MOTOR (~15 HP; 480 V; 1800 RPM); APPROX 230 GALLON TANK; HIGH PRESSURE SPEED CONTROL; LOW PRESSURE AND HIGH PRESSURE GAUGES; 225 TONS AT APPROX 3000 PSI. APPROX SPEEDS: CLOSE FROM 10 IPM TO 236 IPM; OPEN FROM 47 IPM TO 236 IPM. RELAY CONTROL SYSTEM: PALM BUTTONS; 0-3 MINUTE TIMER; ADJUSTABLE PROX SWITCHES; 10” LIGHT CURTAINS. MESH GUARDING SIDES AND REAR. OVERALL DIMENSIONS APPROX: 84” X 60” X 92” TALL. APPROX 13,000 POUNDS. MANUAL AND PRINTS. ITEM #2605.
