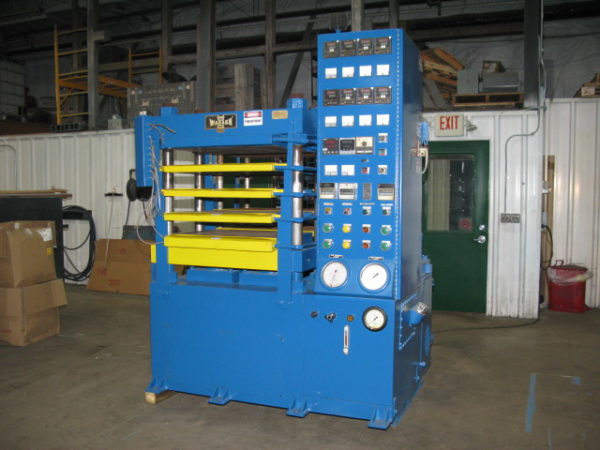

150T 30″ X 24″ WABASH, 16″ MAX STROKE, 4 POST

MODEL MIL150-3024-5TM. SERIAL #6628. MANUAL IN-LINE LAMINATOR. SET UP WITH FIVE 30” X 24” X 2”  ELECTRICALLY HEATED PLATENS RESULTING IN FOUR 4” OPENINGS (IF ALL PLATENS WERE REMOVED=27.5”; WITH ONE PAIR OF PLATENS=21.75”). CLAMP CYLINDERS: TWO 8” BORE; 3.5” ROD DIAMETER; 16” MAX STROKE. 42” OPERATOR HEIGHT (WITH PLATEN). FULLY GUIDED ON 3” DIA. POSTS. ELECTRIC PLATENS: 14 CARTRIDGE HEATERS PER PLATEN (24” X 0.625”; 240V; 1500 W-NOTE: TOP AND BOTTOM PLATENS ARE 1250 W); TWO-ZONES; 600F; 98,000 WATTS. ELECTRICAL CONTROL SYSTEM: RELAY; 10 TEMP CONTROLLERS; 10 AMP GAGES; 480V SYSTEMS; 300 AMP DISCONNECT; TIMERS (HIGH PRESSURE; LOW PRESSURE; COLD PRESS); PALM BUTTONS FOR HOT PRESS AND COLD PRESS (FRONT & REAR). SELF-CONTAINED HYDRAULIC SYSTEM: 47 GALLON TANK; 5 HP MOTOR (1800 RPM); 39 GPM VANE PUMP;  0.57 GPM PISTON PUMP; WATER-TYPE HEAT EXCHANGER; ADJUSTABLE PRESSURE; ETC… APPROX SPEEDS: 90 IPM CLOSING; 1.2 IPM PRESSING; 110 IPM OPENING. PNEUMATIC COUNTER-BALANCE CYLINDERS ON HOT PRESS. OPTIONAL COLD PRESS BEHIND THE HOT PRESS: 5” BORE CYLINDER WITH  18” STROKE; 1.5 HP 1800 RPM MOTOR; 4 GPM DOUBLE-A GEAR PUMP; 4 OPENINGS. APPROX OVERALL DIMENSIONS: 72” X 72” X 98” TALL. APPROX 18,000 POUNDS. MANUAL AND PRINTS.  ITEM #2676.
